BCH 1000w ISO PEM new style metallic hydrogen fuel cell

Brief introduction

For this is reason fuel cell systems are now being deployed in leisure applications to charge the battery, independent from sun and wind power. BCH fuel cell components play an important role to keep these systems running.

Sepecifications:

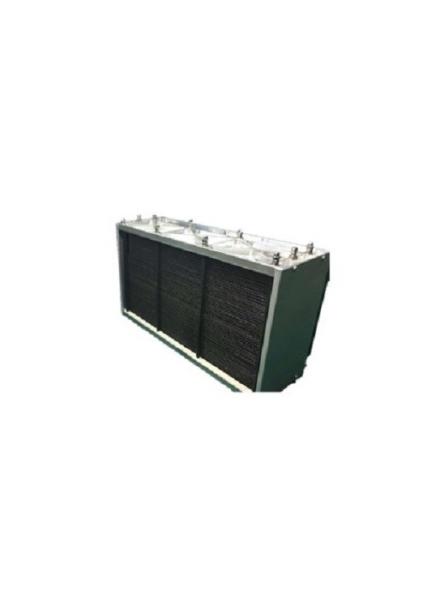

This stack is assembled by metal bipolar plate has better electrical conductance,thermal conductance and mechanical property than graphite bipolar plate.In addition ,metal bipolar plate is quite suitable for dereasing the stack thickness,realizing mass production ,and enhancing the volume power density or mass specific power.

1. High efficiency (>50%)and high specific power. The power density of membrance could reach more than 2A/cm² at 0.6V,with total weight of PT loaded on the cathode and anode is 0.6mg/cm² and excess coefficient is 1.5 and 2.5 for hydrogen and air ,respectively.

2. Lightweight and zero emission.The air-cooling and self-humidifying technology greatly simplifies the fuel cell system ,and the specific power of the stack with newly designed metal plate can achieve more than 600W/kg.

3. Reliable and independent of power grid .Unique designed structure with positive voltage on anode,negative voltage on cathode and air-open cathode enables fuel cell to preseng extraordinary safety,and immediately operate once with hydrogen supplied.

4. Easy maintenance.Modular cell stack technology that assembled by modular single cell in series with independent elecricity generation and cooling funcion greatly simplifies the stacking and maintenance.

Technical parameters

FAQs

1. Is your company trading company or manufacture ?
Our company is manufacture specializing in fuel cell since 2008.
2. Can your products be used on the UAV directly?
Yes, Plug-and-Play.
3. Can you customize the rated power or voltage?
Yes, customizing products is acceptable.
4. Can your company provide whole system(fuel cell, hydrogen storage tank, relief valve)?
Yes, we can provide necessary accessories accordingly.
5. What is the advantage of your product?
Light and small, safe and stable, long endurance.
6. What kind of hydrogen storage tank can you provide?
Now we can provide 5L and 9L hydrogen cylinder.

Based on the enterprise-university relationship with Tsinghua University by means of the National Basic Research Program of China and the National High Technology Research and Development Program, Jiangsu Ice-City Hydrogen Energy Technology Co.,Ltd is established in 2014. With the permit of patent and training of technical production personnel from Tsinghua University, we already had several critical technologies on high-performance components fabricated by domestic materials and assembly of modular stack in addition to mass production technology of membrane. Meanwhile based on the demands of the market, especially for the power source of forklift and tourist vehicle, as well as the uninterruptible power supplies for telecom and special power sources with high energy density, we successfully developed the second generation lightweight fuel cell generator.

Our company has taken part in FCexpo held in Japan since 2015. Our products are successfully exhibited from 2015-2018, the advanced technology is highly recognized by the international customers.
