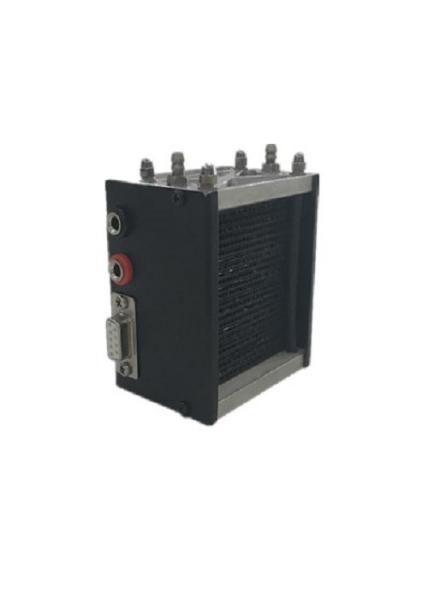

BCH 50w customize PEM air-cooling hydrogen fuel cell power
generator
Brief introduction
The basic mechanism behind these sorts of fuel cells is that energy
is created from a reacting of positively hydrogen ions and an
oxidizing agent, which is often oxygen. Unlike batteries, hydrogen
fuel cells need a continuous source of oxygen or other fuel in
order to keep the chemical reaction happening, which means that
they can run continuously as long as they are supplied with the
essential inputs.
Technical parameters
| size | 92*72*48mm |
| total weight | 0.28kg |
| bare weight | 0.2kg |
| working vlotage | 14.4v |
| voltage range | 12-21v |
| fuel efficiency | ≥42% |
| working temperature | 0℃~35℃ |
| working humidity | 30%-90% |
| hydrogen quality | 99.99% |
| inlet pressure | 0.06mpa |
| warranty | 1 year |
A fuel cell is composed of an anode, a cathode, and an electrolyte
membrane. A fuel cell works by passing hydrogen through the anode
of a fuel cell and oxygen through the cathode. At the anode site,
the hydrogen molecules are split into electrons and protons. The
protons pass through the electrolyte membrane, while the electrons
are forced through a circuit, generating an electric current and
excess heat. At the cathode, the protons, electrons, and oxygen
combine to produce water molecules.
FAQs
1. Is your company trading company or manufacture ?
Our company is manufacture specializing in fuel cell since 2008.
2. Can your products be used on the UAV directly?
Yes, Plug-and-Play.
3. Can you customize the rated power or voltage?
Yes, customizing products is acceptable.
4. Can your company provide whole system(fuel cell, hydrogen
storage tank, relief valve)?
Yes, we can provide necessary accessories accordingly.
5. What is the advantage of your product?
Light and small, safe and stable, long endurance.
6. What kind of hydrogen storage tank can you provide?
Now we can provide 5L and 9L hydrogen cylinder.
